Introduction

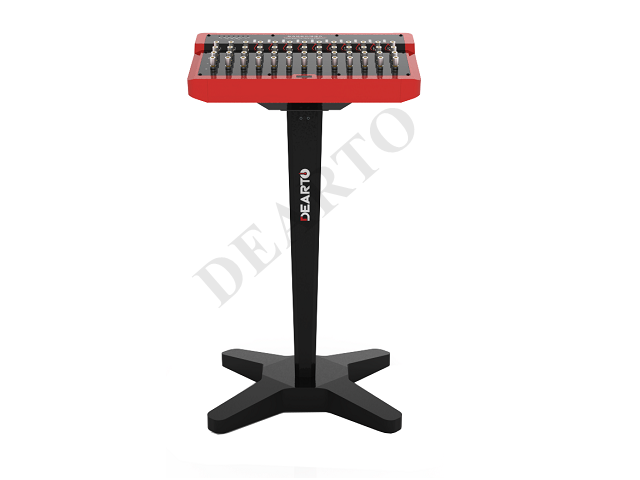

DJ-210T Smart Switching Platform:

1. Supports temperature transmitter input functionality:

      2-wire current-type temperature transmitter (4-20mA)

      4-wire current-type temperature transmitter (4-20mA)

      Voltage-type temperature transmitter (0-5V/0-10V)

2. Supports 10-channel dedicated thermocouple socket interfaces.

3. Supports RS485 communication interface.

4. Supports automatic 2-wire / 3-wire / 4-wire RTD (Resistance Temperature Detector) conversion. During the calibration measurement of 3-wire RTDs, it automatically completes the functional switching between configurations containing two lead wires and containing one lead wire. It complies with the "JJG 229-2010 Verification Regulation of Industrial Platinum and Copper Resistance Thermometers". Additionally, it makes the wiring for thermocouple and RTD calibration more convenient and aesthetically pleasing, eliminating the need for cumbersome repetitive wiring.
