Introduction

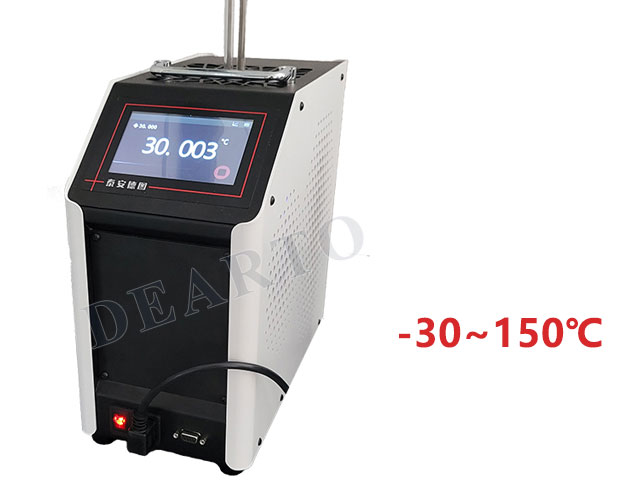

The calibration range of DTG-150G Low-Temperature Smart Dry Block Calibrator can be from -30℃ to 150℃. The uniform temperature block in the furnace is made of high thermal conductivity aluminum alloy, which can ensure the uniform and stable internal temperature field. The dry block furnace is a very reliable and stable constant temperature source, It can be used for temperature calibration in industrial field or laboratory..
Product Features:
● Support bilingual switching between Chinese and English, and support custom switching between ℃ and ℉.
● Multifunctional smart touch screen: high-definition color touch screen, interactive menu mode, rich display information, easy operation, and real-time display of calibration status.
● Convenient and portable: small size, light weight, strong anti-interference, more suitable for on-site calibration.
● On-demand customization service of soaking blocks: support customizing soaking blocks of different sizes and specifications according to the insertion depth and outer diameter of the tested sensor.
● Protection function: The device has a built-in overheating protection function, which is safe and stable.
● Multi-point correction: supports automatic calibration/correction of multiple temperature points; segmented PID control, supports one-key temperature rise, and fully automatic temperature control.
● Communication function: It has RS-232 communication interface, supports data transmission function, can upload to PC and save data automatically.
Technical Parameters
Low-Temperature Smart Dry Block Calibrator | ||
Model | DTG-150G | DTG-U42G |
Temp. range | -30 ℃ to 150 ℃ | -42 ℃ to 150 ℃ |
Display resolution | 0.01℃ | |
Dimensions | 170×320×330(mm) | 199×328×364(mm) |
Weight | 8 kg | 10 kg |
Display accuracy | ±0.2 ℃ | ±0.2 ℃ |
Radial stability | ±0.2 ℃ | ±0.2 ℃ |
Stability | ±0.15 ℃ | ±0.15 ℃ |
Hole sizes of | Φ4.5, Φ6.5, Φ8, Φ10; Please specify the insertion depth and outer diameter of the sensor to be calibrated when placing an order (customizable). | |
Language/unit | Chinese/ English Language Switch; ℃ and ℉ Unit Toggle | |
Control method | Smart Touchscreen with Multi-Point Calibration | |
Power supply | 220 V / 50 Hz（or 110 V / 60 Hz） | |
