Introduction

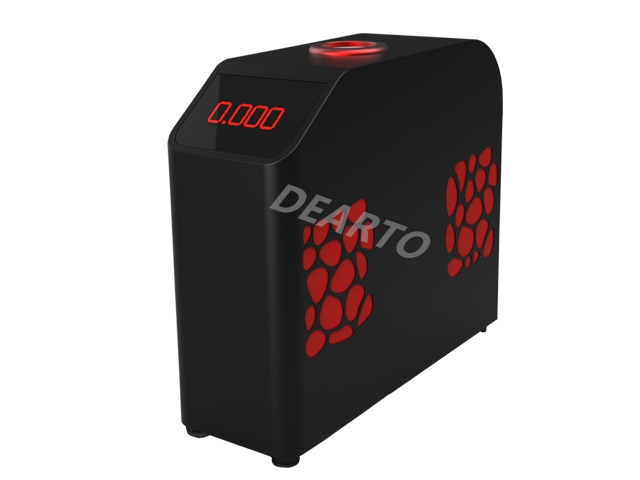

DTBH Portable Automatic Zero Degree Celsius Dry Well Thermostat / Temperature Compensation Device is a device that can provide a stable and accurate zero degree Celsius temperature field for the thermocouple reference end for a long time. automatic thermostat (Zero Celsius Thermostat)is an ideal substitute for traditional ice buckets and is very suitable for the verification / calibration of thermocouples. The technical specifications of the equipment are in full compliance with the new regulation "JJF1637-2017 Calibration Standard for Base Metal Thermocouples".
Technical Parameters
Model | DTBH-01G | DTBH-03G |
Accuracy | 0℃±0.05℃ | 0℃±0.03℃ |
Resolution | 0.001℃ | 0.001℃ |
Stability | ±0.02℃/10min | <0.02℃/10min |
Number of jacks and aperture | 7×φ9 | 7×φ9 |
Jack depth | 205mm | 205mm |
Dimensions (mm) | 290×190×300 | 360×125×310 |
Rated voltage | AC220V/50Hz | AC220V/50Hz |
Ambient temperature | 5℃-30℃ | 5℃-30℃ |
Relative humidity | 10%RH-80%RH | |
