Product Features
1. Large diameter cavity, which can adapt to most D:S radiation thermometers;
2. Imported 0.1-level temperature control meter is selected, and the temperature control accuracy is high;
3. The temperature control meter has a multi-point correction function;
4. Comply with the regulations of JJG 856-2015 "Radiation Thermometer for Work".
Technical Parameters

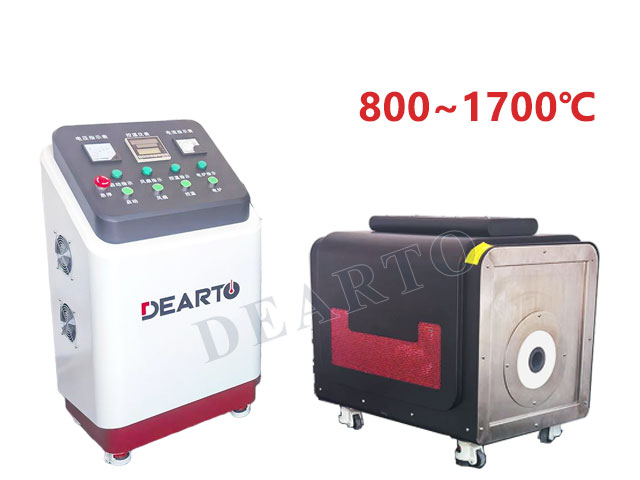

Model | DTR-1700G |
Temp. Range | 800℃～1700℃ |
Heating time | 1h (from RT to 700℃); |
Emissivity | Ε >0.998 |
Cavity Size | Φ50 mm |
Temp. Resolution | 0.1℃ |
Stability of Temp. Control | ≤ (the greater of 0.1℃ and 0.1%t)/10min |
Target Surface Uniformity | ≤ (the greater of 0.15℃ and 0.15%) |
Power Supply | 220V AC 50Hz |
Power | 6.5kW |
Dimensions | 730*780*1470 mm |
Weight | Approximately 150kg |
