Introduction

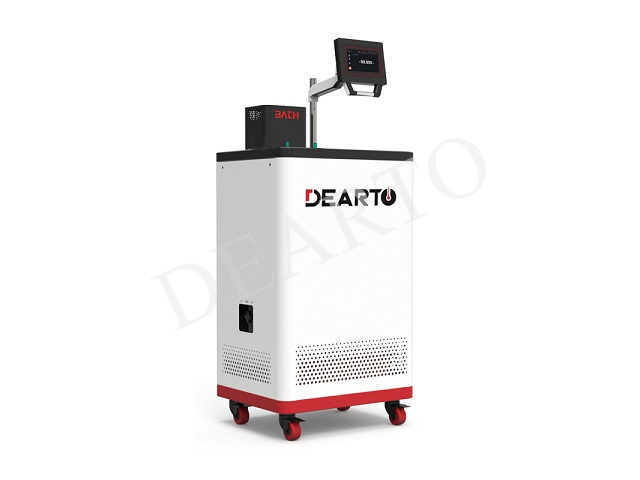

DTS-T Series high and low temperature liquid calibration bath is on the basis of the original standard calibration bath to meet the different needs of customers for temperature measurement range. The technical indicators of the DTS-T Series high and low temperature calibration bath is basically the same as the original ordinary calibration bath, but meet the different needs of customers in the temperature range, The customer originally needed two different constant temperature bath to complete, now only needs one tank to complete.
.
1. The temperature field uniformity is good by using double bath side stirring mode.
2. Intelligent PID control, with excellent temperature field stability and uniformity;
3. High resolution display instrument, resolution 0.001℃.
4. Imported compressor, stable and reliable performance, optimized refrigeration system cooling speed faster.
5. Wide temperature range: no need to replace the working medium, a working medium can meet the (-20~180)℃ range of detection work.
6. RS232/RS484 communication interface selection, can achieve computer control.
7. Humanized design control is comfortable and convenient.
Technical Parameters
Product name | High and Low Temperature Liquid Calibration Bath | |
Model | DTS-T150G Calibration Bath | DTS-T180G Calibration Bath |
Temperature range | -20~150℃ | -20~180℃ |
Working medium | Special anti-freezing oil | Special anti-freezing oil |
Uniformity of horizontal temperature field | 0.010℃ | 0.010℃ |
Uniformity of vertical temperature field | 0.010℃ | 0.010℃ |
Temperature fluctuation | 0.010℃/10 min | 0.010℃/10 min |
Work area dimensions | φ130×480 | φ130×480 |
Medium volume:(L) | 18L | 18L |
Maximum power :(KW) | 2.8 | 2.8 |
Dimensions :(mm) | 660(L)×540(W)×1120(H) | |
