Introduction

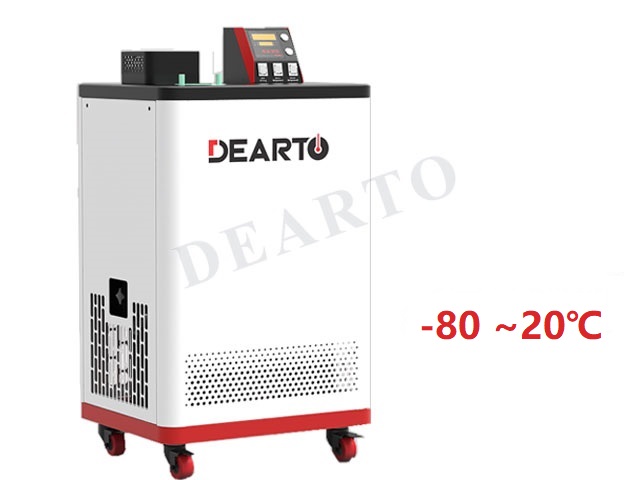

DTS-CHG Ultra-Refrigerated Temperature Calibration Bath is one of the special customized series of refrigerated calibration bath launched by our company, which can meet the customization/calibration of various temperature sensors.Among them, The cooling effect of DTS-180CHG refrigeration calibration bath can reach the lowest temperature of -180 degrees.(Special index products can be customized according to requirements)
Technical Parameters
| Model | DTS-100CHG calibration bath | DTS-160CHG calibration bath | DTS-180CHG calibration bath |
| Control style | Precision meter control(Optional intellgent touch screen) | ||
| Temperature range | -100℃～95℃ | -160℃～40℃ | -180℃～-40℃ |
| Temperature uniformity | ≤0.01℃ | ≤0.05℃ | ≤0.05℃ |
| Temperature fluctuation | ≤0.01℃/30min | ≤0.03℃/30min | ≤0.03℃/30min |
| Working zone | ￠130×480(mm) | ￠6,￠12×280(mm)(customizable) | |
| Overal dimensions | 800*600*1000(mm) | 500*620*600(mm) | |
| Power supply | 220V(Optional 380V) | 220v | |
