Introduction

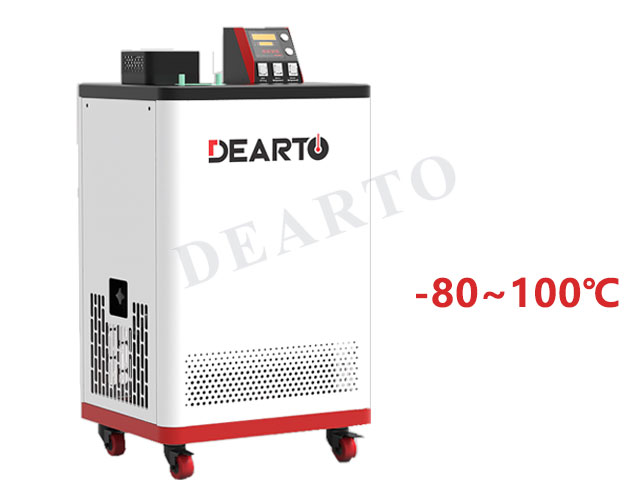

DTS Series precision low temperature liquid calibration bath is the ideal temperature constant temperature equipment for verifying and calibrating various low temperature thermocouple, industrial thermal resistance, pressure thermometer, bimetal thermometer, glass liquid thermometer and other temperature sensors.
This liquid calibration bath adopts the structure of lateral stirring in the design, The technical indicators of the temperature field in the working area meet the technical requirements of the temperature uniformity and temperature fluctuation of the constant temperature tank. At the same time, this series of liquid calibration bath have simple operation and convenient use. Etc.(Special index products can be customized according to requirements)
Technical Parameters
Product name | Precision Liquid Calibration Bath | ||||||
Model | DTS-01G | DTS-10G | DTS-30G | DTS-40G | DTS-60G | DTS-80G | |
Temperature range | 0~100℃ | -10~100℃ | -30~100℃ | -40~100℃ | -60~100℃ | -80~100℃ | |
Working medium | Antifreeze | anhydrous ethanol | |||||
Uniformity of horizontal temperature field | ≤0.01℃ | ≤0.010℃ | ≤0.010℃ | ||||
Uniformity of vertical temperature field | ≤0.01℃ | ≤0.010℃ | ≤0.010℃ | ||||
Temperature fluctuation :℃/10 min | ±0.01℃ | ±0.010℃ | ±0.010℃ | ||||
Work area dimensions | φ130×480 | ||||||
Volume :(L) | 18.5 | ||||||
Maximum power :(KW) | 2 | 2.8 | 3 | 3 | |||
Dimensions :(mm) | 660(L)×540(W)×1120(H) | 700*590*1120 | |||||
Quality :(Kg) | 95 | 115 | 155 | ||||
